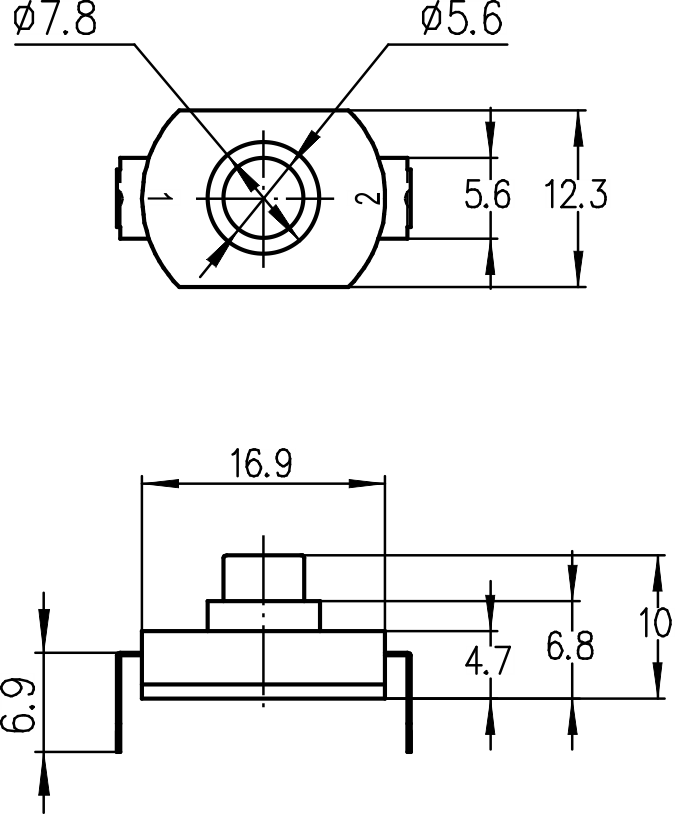

產品描述Product description
◆FA7-6G系列是一款小型型的2檔位或3檔位按鈕開關，應用于各類小型低電流電器，如：充電式電筒、玩具、剃須刀等。
◆FA7-6G series are mini-type push-button switch with 2 postion or 3 position, for used in low current appliances such as Rechargeable Lights, Toys or Shavers, etc.
產品特征Features
◆可選帶以下功能 Optional with the function as follows:
→單極常開 SPNO (Single Pole Normally Open)
→單極常開帶閉合自鎖 SPNO with latching
技術數(shù)據Technical data
→機械耐久壽命 Mechanical life endurance≥5E4
→電氣耐久壽命 Electrical life endurance≥1E4
→最大電流 Max. currentat 12Vd.c0.1A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function500V
→加強介電強度 Dielectric strength of reinforced500V
→環(huán)境溫度 Ambient temperature0°C~85C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II
端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→焊接端子 Soldering terminals
電氣參數(shù)和認證 Electric Rating and Certification
